GR-PADrawn Screw Flight
Drawn screw flights for lower-cost, lightweight conveying of grain, powder, cement, sand and coal, in diameters from 15 to 125 mm.
Request a QuoteTechnical Specifications

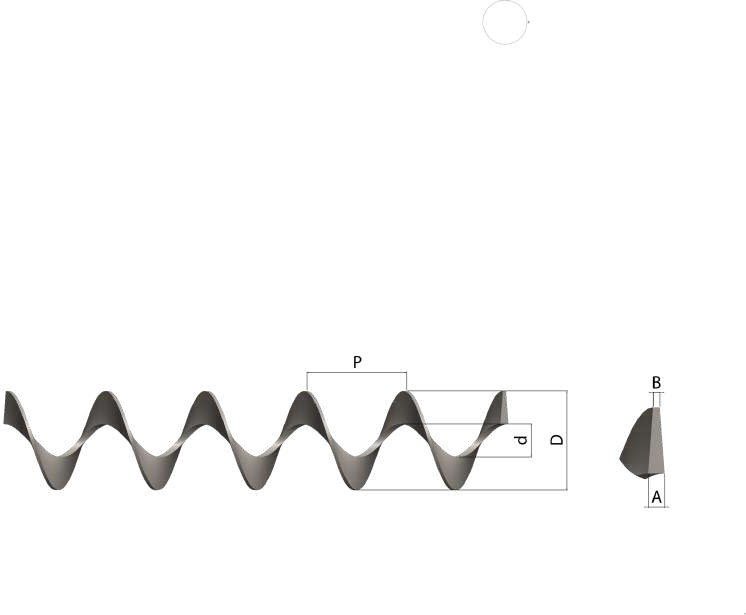

| D | P | d | Length (m) |
|---|---|---|---|
| 15 | 15 | 6 | 1 |
| 20 | 20 | 8 | 1.2 |
| 30 | 30 | 12 | 1.2 |
| 40 | 40 | 14-18 | 1.25 / 1.2 |
| 50 | 50 | 22-27 | 1.25 |
| 65 | 65 | 27 | 1.3 |
| 80 | 80 | 27 | 1.4 |
| 98 | 98 | 27-34 | 1.5 / 1.4 |
| 125 | 125 | 34 | 1.5 / 1.4 |
Table is shown as an example; contact us for sizes outside the table.
Product Benefits
System Integrity
Helps join conveyors and form a continuous loop.
Packaging
Shipped in packages or on pallets according to the requested transport method.
Low Cost
Comes with low operating and maintenance costs.
Length
Produced in standard lengths between 1 and 1.5 m.
Versatile
Able to work with various powder-form materials.
Fast Delivery
Shipped quickly domestically and internationally.
Versions
Made in right or left direction as preferred.
Material
Chrome steel is used on request.
- Manufactured in line with European health, safety and environmental standards.
