GR-HBBConveyor Head Bearing
Head bearings for screw conveyors in sizes 168 to 323, supporting the drive end of the screw and helping extend system life.
Request a QuoteTechnical Specifications

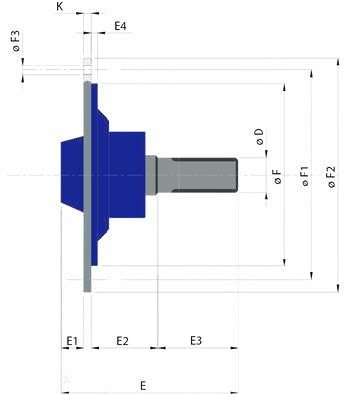

| Model | D | E | E1 | E2 | E3 | E4 | F | F1 | F2 | ØF3 | N | K | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GR-HBB-168 | 40X36 | 197.5 | 32 | 72.5 | 85 | 3 | 162 | 220 | 250 | M10 | 8 | 8 | 7 |
| GR-HBB-219 | 40X36 | 197.5 | 32 | 72.5 | 85 | 3 | 210 | 250 | 275 | M10 | 8 | 8 | 7.5 |
| GR-HBB-273 | 40X36 | 197.5 | 32 | 72.5 | 85 | 3 | 265 | 305 | 330 | M10 | 8 | 8 | 9.5 |
| GR-HBB-323 | 40X36 | 197.5 | 26 | 72.5 | 85 | 4 | 315 | 370 | 405 | M10 | 8 | 14 | 15 |
Product Benefits
System Integrity
Helps join conveyors and form a continuous loop.
Boosts Efficiency
Increases plant efficiency by helping the material flow smoothly.
Low Cost
Comes with low operating and maintenance costs.
Easy Maintenance
Thanks to its mechanical structure, it is easy to maintain.
Versatile
Able to work with various powder-form materials.
Fast Delivery
Shipped quickly domestically and internationally.
Durable
Helps prevent wear of the conveyor system, which extends the life of the system.
Warranty
1-year return warranty available.
- Manufactured in line with European health, safety and environmental standards.
